The Aluminum SA7500 commercial garage door sets the bar for product quality and performance while adding a unique look to any space. The SA7500 is constructed from the toughest corrosion resistant aluminum and is designed for years of reliable operation.

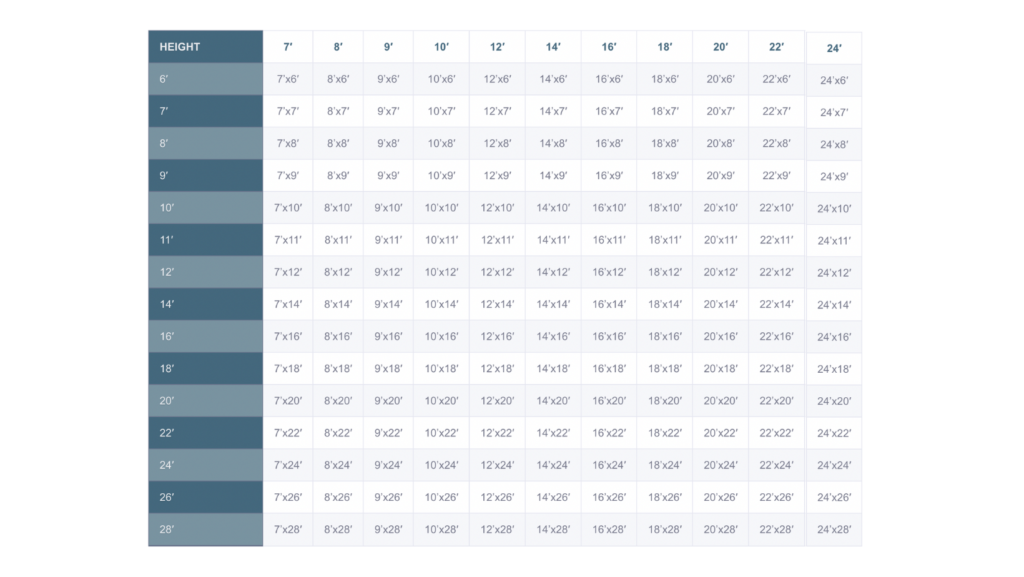

Aluminum SA7500 Door Size Chart
2″ Track
Standard Height-2" Track
3″ Track
Standard Height-3" Track
SA6500 Features
*New Design*
Hydr-O-Guard
Re-designed to keep the weather out.
Note: SA6500 Aluminum rails will be used going forward on all Aluminum door styles.
Frames
- Thickness: 1.8mm (0.071”) to 2.5mm (0.100”); 3.2mm (1/8”) or more at fastener locations.
- Intermediate Stiles: located on interior face only. 1.6mm (0.063”) minimum and 4.8mm (0.189”) at fastener locations. Stile width 76mm (3.0”).
- Top Rail: aluminum strut 38mm (1-1/2”) deep.
Insulated Aluminum Panel
1.27 mm thick aluminum sheet material insulated and sealed to door frame.
Door Face Hardware
- Graduated end hinges and centre hinges made from galvanized steel.
- Heavy duty rollers with heat-treated and outer races with 10 floating ball bearings.
Tracks
50 mm or 75 mm wide galvanized steel tracks.
Weatherstripping
- Bottom weatherstripping: U-type arctic grade vinyl.
- Jamb: quality factory finished metal with two-point flexible arctic grade vinyl weatherstrip.
- Header: quality factory finished metal with two-point flexible arctic grade vinyl weatherstrip.
- Section Interface: arctic grade vinyl bubble shaped weatherstrip at all section meeting rails in integral retainer.
Counterbalance System
- Class II oil tempered ASTM A229 wire, minimum 10,000 cycle torsion springs on continuous steel shaft.
- Aircraft quality galvanized lift cables with a minimum safety factor of 5 to 1.
Locking
Interior mounted slide bolt suitable for pad locking.
Operation
Manual, Optional Hand chain hoist (3-1 ratio) or optional electric operator.
About Our Colours
Every door is finished with a factory applied, baked on, two coat polyester paint finish giving years of maintenance free operation.
Doors may be painted to suit the exterior colour specifications.
Note: The accuracy of the colours displayed may vary depending on the settings of your monitor. To obtain an exact colour reference, please contact us for colour samples.
Anodized
Acrynar Finish
Duranar Finish
Clear
White
Black
Vision Lite (Sealed Glass)
Note: Consult with us on the wide variety of glass options and special orders.
Available in single pane and thermo sealed units.
Clear
Satin Texture
Thermoclear Polycarbonate
Double Wall 6mm
Triple Wall 16mm
Triple Wall 16mm
Triple Wall 16mm
Triple Wall 16mm
Triple Wall 16mm
Triple Wall 16mm
Triple Wall 16mm
Note: The glazing material (Thermoclear®) used is ideal for humid environments, however it differs from glass in that it’s not sealed, therefore condensation may form in the cellular walls when interior/exterior temperatures are such that dew point temperatures are created (usually in periods of cooler weather). This condensation usually disappears when warmer weather returns.
Lexan Polycarbonate
Available in clear sheet only – 3mm and 6mm single pane.
Acrylic
Available in clear sheet only – 3mm and 6mm single pane.
